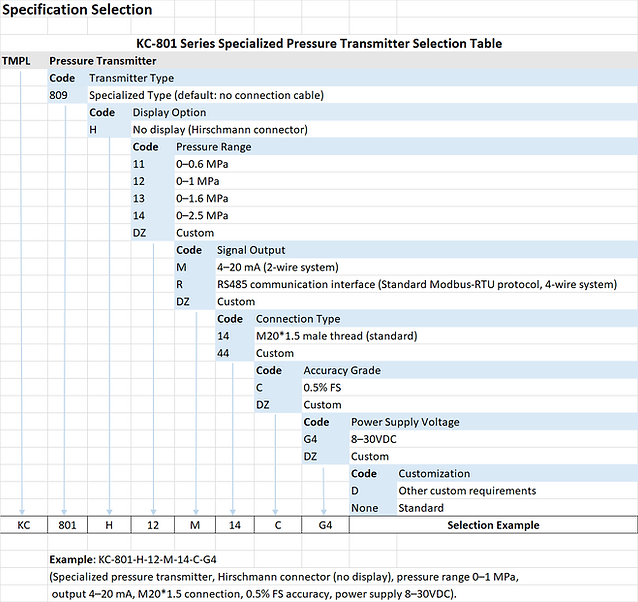

KC-801 Series Specialized/Universal Pressure Transmitter
Speicalized Typical Applications
- Constant pressure water supply
- Thermal system
- Heat exchange station, etc.
Universal Typical Applications
- Widely used in various industrial fields
Specialized Type Product Features
a) Adopting diaphragm isolation technology
b) Integrated chip, wide voltage power supply
c) Compact structure, easy installation
d) Cut-off frequency design, strong anti-interference ability
e) Current limiting, voltage limiting, reverse connection protection (current limiting output)
Universal Type Product Features
a) Adopting diaphragm isolation technology
b) Integrated chip, wide voltage power supply
c) Compact structure, easy installation
d) Cut-off frequency design, strong anti-interference ability
e) Current limiting, voltage limiting, reverse connection protection (current limiting output)
f) High precision, good stability, fast response speed, impact resistance
Size drawing
The specific size is subject to the actual object
Technical Parameters - Specialized Type
Measurement medium: liquid or gas (compatible with contact material)
Overall material: diaphragm 316L stainless steel (contact)
Process connection 304 stainless steel (contact)
Housing 304 stainless steel
Seal Nitrile rubber (contact)
Hissman connector ABS engineering plastic
Pressure range: 0-0.6 to 2.5MPa (see range selection table for details)
Pressure mode: gauge pressure
Output signal: 4 to 20mA, RS485 (standard Modbus-RTU protocol)
Power supply voltage: 8-30VDC
Accuracy level: 0.5%FS
Working conditions: medium temperature -20～80℃
Ambient temperature -20 to 85℃
Ambient humidity 0% to 95%RH (no condensation and no condensation)
Temperature compensation: -10 to 70℃
Seismic performance: 10g (20...2000Hz)
Overload capacity: 200% full scale
Response frequency: analog signal output 10-2400Hz, digital signal output 10
40Hz stability performance: ±0.2% FS/year
Temperature drift: ±0.02%FS/℃ (within temperature compensation range)
Overall weight: ≈190g
Protection level: IP65
Note: The above protection level refers to the level achieved after the electrical connection is complete
Power range: current type ≤0.02Us(W)
Digital type ≤0.015Us(W)
Note: Us=supply voltage
Load characteristics: current type load ≤{(Us-7.5)÷0.02(Us=supply voltage)}Ω
Technical Parameters - Univeral Type
Measuring medium: liquid or gas (compatible with contact material)
Overall material: diaphragm 316L stainless steel (contact)
Process connection 304 stainless steel (contact)
Housing 304 stainless steel
Seal nitrile rubber (contact)
Display housing ABS engineering plastic (digital tube display)
Hissman connector ABS engineering plastic
Pressure range: -100kPa to 0 to 100MPa (see range selection table for details)
Pressure mode: gauge pressure, absolute pressure, negative pressure
Output signal: 4 to 20mA, RS485 (standard Modbus-RTU protocol),
(0 to 10VDC, 0 to 5VDC, 1 to 5VDC, 0.5 to 2.5VDC customized)
Power supply voltage: 8-30VDC conventional
12-30VDC conventional (with display or output 0 to 10VDC)
3 to 5VDC customized (output is 0.5 to 2.5VDC/RS485)
Accuracy level: 0.1%FS (range ≥ 100kPa custom)
0.25%FS (range ≥ 100kPa default)
0.5%FS (10kPa≤range＜100kPa default)
1%FS (range＜10kPa default)
Header display accuracy 0.5 level, digital tube (LED) display
Working conditions: medium temperature -40 to 85℃
Ambient temperature -40 to 85℃
Ambient humidity 0% to 95%RH (no condensation and no condensation)
Temperature compensation: -10 to 70℃ (accuracy 0.25%FS, 0.5%FS, 1%FS) -40 to 80℃ (accuracy 0.5%FS)
Seismic performance: 10g (20...2000Hz)
Overload capacity: 200% full scale
Response frequency: analog signal output 10-2400Hz, digital signal output 10Hz
Stability: ±0.1% FS/year
Temperature drift: ±0.01%FS/℃ (within temperature compensation range)
Overall weight: No display ≈190g With display ≈270g
Protection level: IP65 (no display) IP54 (with display)
Note: The above protection level refers to the level achieved after the electrical connection is complete
Power range: Current type ≤0.02Us(W)
Digital type ≤0.015Us(W)
Voltage type ≤0.008Us(W)
Voltage type (output 0.5 to 2.5) ≤0.001Us(W)
Note: Us=supply voltage
Load characteristics: Current type load ≤{(Us-7.5) ÷ 0.02 (Us=supply voltage)}Ω
Voltage type load ≥100kΩ
Wiring diagram
Specialized/Universal Type
Universal Type
Specialized/Universal Type
O represents shielded wire, and all marked grounding points must be effectively grounded.
The transmitter housing is grounded by default, so field equipment must be effectively grounded.
Only the current output has reverse connection protection (no damage but not working),
current limiting and voltage limiting protection. Reverse connection of other output signals will cause damage to the transmitter.

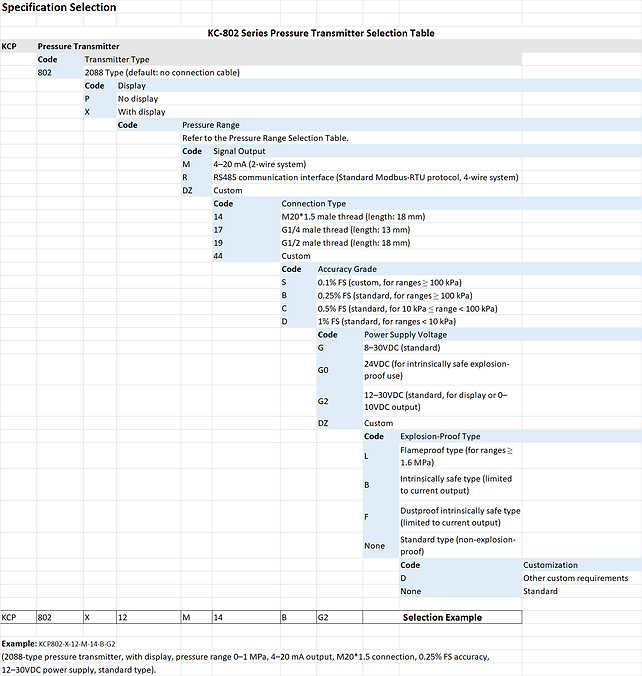

KC-802 Series Pressure Transmitter
STypical Applications
- Oil and gas industry
- Chemical and petrochemical industry
- Energy engineering
- Heavy industry
Product Features
a) Using diaphragm isolation technology
b) Integrated chip, wide voltage power supply
c) Easy installation, intrinsically safe and explosion-proof
d) Cut-off frequency design, strong anti-interference ability, lightning protection
e) Current limiting, voltage limiting, reverse connection protection (current limiting output)
f) High precision, good stability, fast response speed, impact resistance
Technical Parameters
Technical parameters
Measurement medium: liquid or gas (compatible with contact material)
Overall material: diaphragm 316L stainless steel (contact)
Process connection 304 stainless steel (contact)
Sheet die-cast aluminum
Seal nitrile rubber (contact)
Pressure range: -100kPa to 0 to 100MPa (see range selection table for details)
Pressure mode: gauge pressure, absolute pressure, negative pressure
Output signal: 4~20mA, RS485 (standard Modbus-RTU protocol),
(0~10VDC, 0~5VDC, 1to 5VDC customized)
Power supply voltage: 8-30VDC conventional
24VDC intrinsically safe/dust intrinsically safe
12-30VDC conventional (with display or output 0 to10VDC)
Accuracy level: 0.1%FS (range ≥ 100kPa custom)
0.25%FS (range ≥ 100kPa default)
0.5%FS (10kPa≤range＜100kPa default)
1%FS (range＜10kPa default)
Header display accuracy 0.5 level, digital tube (LED) display
Working conditions: medium temperature -40 to 85℃
Environmental humidity 0% to 95%RH (no condensation and no condensation)
Environmental temperature -40～85℃ (explosion-proof environment -20 to 40℃)
Temperature compensation: -10 to 70℃ (accuracy 0.25%FS, 0.5%FS, 1%FS) -40 to 80℃ (accuracy 0.1%FS)
Explosion-proof type: Flameproof type Ex d ⅡC T6 Gb
Intrinsically safe type Ex ia ⅡC T6 Ga (current-limited output)
Dust intrinsically safe type Ex iaD 20 T80℃ (current-limited output)
Note: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Seismic performance: 10g (20...2000Hz)
Overload capacity: 200% full scale or 120MPa (minimum value)
Response frequency: analog signal output 10-2400Hz, digital signal output 10Hz
Stability: ±0.1% FS/year
Temperature drift: ±0.01%FS/℃ (within temperature compensation range)
Overall weight: ≈900g
Protection level: Standard IP65
Explosion-proof IP66
Intrinsically safe IP65
Dust intrinsically safe IP66
Note: The above protection level refers to the level achieved after the electrical connection is complete
Power range: Current type ≤0.02Us(W)
Digital type ≤0.015Us(W)
Voltage type ≤0.008Us（W）
Note: Us=supply voltage
Load characteristics: Current type load ≤{（Us-7.5）÷0.02（Us=supply voltage）}Ω
Voltage type load ≥100kΩ
（4 to 20）mADC
Size drawing
The specific size is subject to the actual object

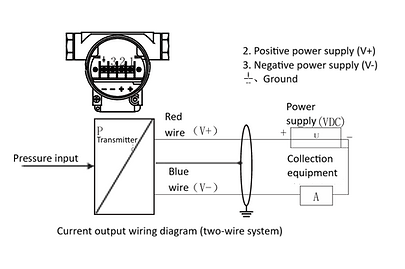

Wiring diagram
O represents shielded wire, and all marked grounding points must be effectively grounded.
The transmitter housing is grounded by default, so field equipment must
be effectively grounded.
Only the current output has reverse connection protection (no damage
but not working),
current limiting and voltage limiting protection. Reverse connection of
other output signals will cause damage to the transmitter.
